PowerDrain Grates

All PowerDrain systems, channel + in-line pit come complete with grates. Grates are manufactured from ductile iron and available in either Slotted or Intercept Heelsaferegistration mark Anti-Slip. Each grate is secured by two PowerLok clips and the unique fit between the trench body edge rail and the grate provide multiple anti-shunt locations to avoid grate movement along the trench.


S100K / H100SK grates

Length
mm

Part
No.

Wgt
kg

Wheel Chair High Heel Bike Safe

Spec
Info

LOAD CLASS G - AS 3996 - 900kN - approximate wheel load 30,000kg

Iron slotted grate

Iron Slotted

500

96082

5.6

tick
cross
tick
cross
PDF
Iron longitudinal grate

Iron Intercept
Heelsafe® Anti-Slip1

500

141299

6.8

tick
tick
tick
tick
PDF

S200K / H200SK grates

Length
mm

Part
No.

Wgt
kg

Wheel Chair High Heel Bike Safe

Spec
Info

LOAD CLASS G - AS 3996 - 900kN - approximate wheel load 30,000kg

Iron slotted grate Iron slotted
500
71976
14.5
cross
cross
tick
cross
PDF

LOAD CLASS E - AS 3996 - 400kN - approximate wheel load 13,700kg

Iron longitudinal grate

Iron Intercept
Heelsafe® Anti-Slip1
500
141215
11.7
tick
tick
tick
tick
PDF

LOAD CLASS D - AS 3996 - 210kN - approximate wheel load 8,000kg

Iron longitudinal grate

Iron Intercept
Heelsafe® Anti-Slip1
500
142685
11.7
tick
tick
tick
tick
PDF

S300K / H300SK grates

Length
mm

Part
No.

Wgt
kg

Wheel Chair High Heel Bike Safe

Spec
Info

LOAD CLASS G - AS 3996 - 900kN - approximate wheel load 30,000kg

Iron slotted grate Iron slotted 500
02445
24.4
cross
cross
tick
cross
PDF

LOAD CLASS E - AS 3996 - 400kN - approximate wheel load 13,700kg

Iron Longitudinal grate

Iron Intercept
Heelsafe® Anti-Slip1
500
141223
19.2
tick
tick
tick
tick
PDF

LOAD CLASS D - AS 3996 - 210kN - approximate wheel load 8,000kg

Iron Longitudinal grate

Iron Intercept
Heelsafe® Anti-Slip1
500
142686
19.2
tick
tick
tick
tick
PDF


Notes:

1 - Meets ASME A112.6.3 Section 7.12 (American high heel standard).



    Trench Grates Specification Information (Spec Info) Sheets

   Heelsafe® Anti-Slip grates

legislative requirementsAt ACO, we believe that pedestrian friendly grates and slip resistance go hand in hand. The grates with the trademark, Heelsafe® Anti-Slip comply to all four specific user requirements; heelsafe, wheelchair and walking cane safe, bicycle safe and are slip rated.

Heelsafe Anti-Slip GrateA slip resistance classification is assigned to these grates. AS 4586 sets out two recognised tests that determine slip resistance: wet pendulum test (P-rating) and oil-wet inclining platform test (R-rating). HB 198 references AS 4586 by specifying the minimum slip resistance ratings dependent on the application.

For more information visit www.heelsafe.com.au


   PowerLok - boltless locking system

PowerLok

is a patented, boltless locking system that provides quick fitting and removal of grates. Helps reduce installation/ maintenance time and cost.

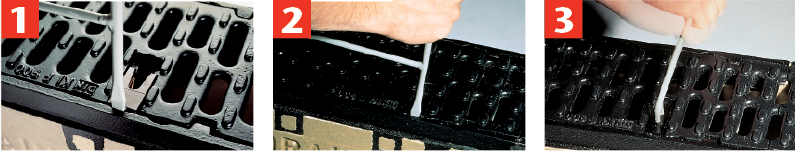

QuickLok installation

To open PowerLok, insert tool between rail and PowerLok device.
Rotate tool 90°, PowerLok device should push away from rail.
To close, place hook part of tool into ‘V’ and push towards rail.


PowerLok Safety Locking Clip

A plastic locking device is available to avoid accidental unlocking of the PowerLok locking device is available.



PowerLok Safety Clip

PowerLok Safety Clip info
