In-line pits - to suit S200K

In-line pits are available with integrally cast in ductile iron edge rails.  Grates are secured with the PowerLok boltless locking mechanism.

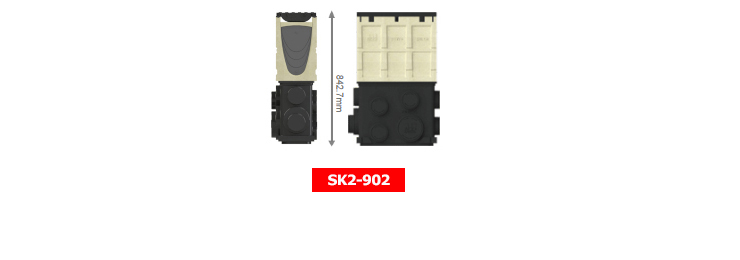

200mm wide in-line pits

Grates for 100mm, 200mm and 300mm In-line pits




   200mm wide Trench Drain In-line pits Parts List


S200K System Parts table
Part No. Invert Depths Overall Depths Weight (kg)
Slotted Heelsafe Female (mm) Male (mm) Female (mm) Male (mm) Slotted Heelsafe
Type 900 In-line pit (0.5m)2 141781 141782 - - 843 843 49.8 47
Type 900 In-line plastic rubbish basket 13999 - - - - 0.5

Notes:
2. In-line pit assembly (polymer concrete top with ductile iron edge rail, PowerLok grate & plastic base)

   200mm wide Trench Drain In-line pits Specification Information (Spec Info) Sheets
