Grated Pits

In-line pits - to suit S300K

In-line pits are available with integrally cast in ductile iron edge rails. Grates are secured with the PowerLok boltless locking mechanism.


Grates for 100mm, 200mm and 300mm In-line pits

300mm wide Trench Drain In-line pits Parts List

S300K System Parts table	Part No.		Invert Depths		Overall Depths		Weight (kg)
S300K System Parts table	Slotted	Heelsafe	Female (mm)	Male (mm)	Female (mm)	Male (mm)	Slotted	Heelsafe
Type 900 In-line Pit²	141783	141784	-	-	956	956	68.7	63.5
Type 900 In-line plastic rubbish basket	98653		-	-	-	-	1.6
Optional plastic riser	141729		-	-	300	300	4.5
Plastic rubbish basket - long	98665		-	-	-	-	1.8

Notes:
2. In-line pit assembly (polymer concrete top with ductile iron edge rail, PowerLok grate & plastic base)

300mm wide Trench Drain In-line pits Specification Information (Spec Info) Sheets

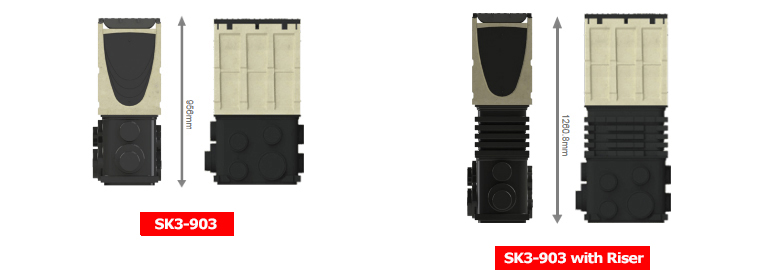

PowerDrain In-line Pits

SK3-903 with Slotted

SK3-903 with Heelsafe

S300K Trench Grates

S300K-H300SK Slotted

S300K-H300SK Heelsafe
